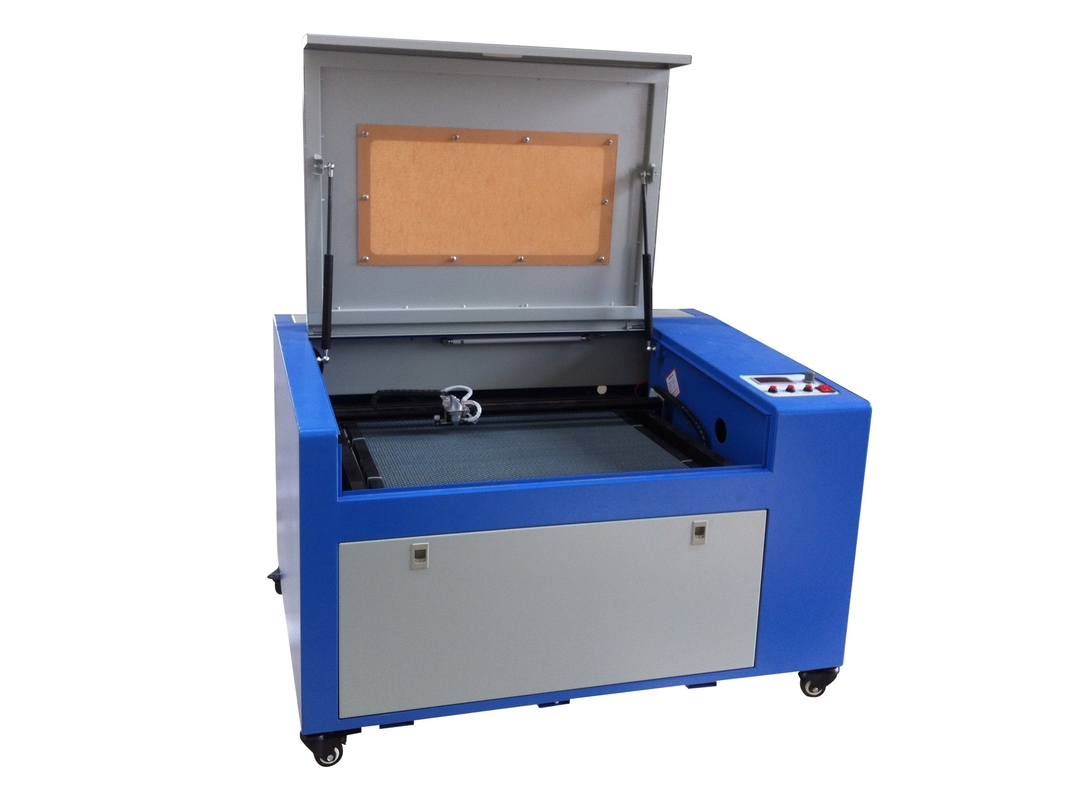

Small Power Cnc Laser Cutting Machine 50 Watt Or 60 Watt For Plexiglass Wooden Board
เครื่องแกะสลักเลเซอร์
,อุปกรณ์ตัดเลเซอร์
,เครื่องตัดเลเซอร์ซีเอ็นซี 60 วัตต์
Small Power Laser Engravieng Machine Cnc Laser Cutting Machine 50 Watt Or 60 Watt
Applicable Material
Cloth,leather,wool,fur,acrylic,plexiglass,wooden board,plastic,resin,rubber,bamboo product,resin and other non-metal materials.
Adavantage
The machine is suitable for garment,leather,package and printing,advertisement decoration,building upholster,art gift,computer embroidery,paper product,acrylic board of plastic,middle density board etc.non-metal sheet precision cutting and other industries.
Technical Parameters
|
Laser Power |
50W-60W(optional) |
|
Laser Type |
hermetic co2 glass tube |
|
Power Supply |
AC220±10% 50HZ/AC 110±10% 60HZ |
|
Working Area |
600mm×400mm |
|
Max Moving Speed |
0---500mm/s |
|
Worktable |
honeycomb worktable/up&down worktable |
|
Locating Precision |
＜0.01mm |
|
Min Shaping Character |
character:3×3mm,letter:2×2mm |
|
Operating Temperature |
5℃---35℃ |
|
Resolution Ratio |
≤4500dpi |
|
DataTransfer Interface |
USB(offline) |
|
Svstem Environment |
WINDOWS 2000/WINDOWS XP/Vista/win7/win8 |
|
Cooling Way |
water cooling and protection system |
|
Graphic Format Supported |
the files which CoreDraw,photoshop,AutoCAD can identify(BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX, CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) |
|
Compatible software |
CorelDraw,LaserDraw |
|
Cutting Thickness |
0---10mm(depends on different materials) |
|
Cuts off the Water Supply the Protection |
yes |
|
Machine Dimension |
(50w--1050×650×750mm) (60w--1400×650×750mm) |
|
Package Dimension |
(50w--1160×760×900mm) (60w--1660×760×900mm) |
|
New Weight |
50w--90kg 60w—95kg |
|
Gross Weight |
50w--100kg 60w—105kg |
-
