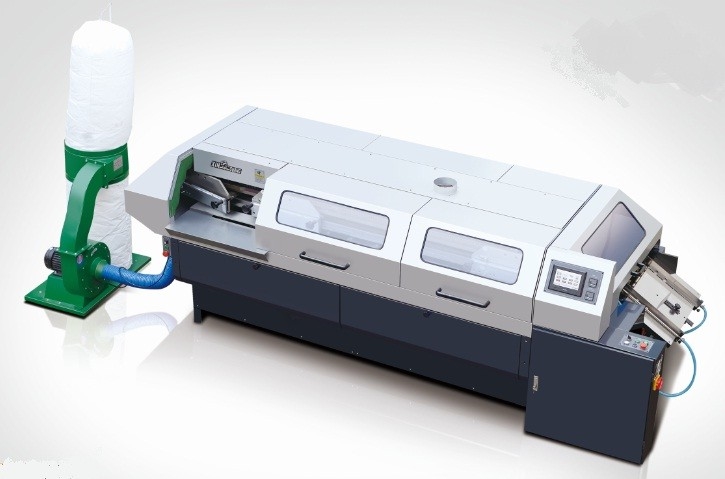

3D 4D 5D Elliptic Book Making Machine Automatic Feeding Electric Binding Machine
Automatic Binding Machine
,Electric Binding Machine
Automaitc 3D 4D 5D Elliptic Perfect Binding Machine Package Machinery
Content
This machine has a function of automatic feeding cover. It adopts the frequency conversion speed adjustment, with touch screen PLC program control, PID temperature control, photoelectric identification control and faults automatic detection and control and etc, and sets the automatic adhesive removal device before and after books with advanced lead rail jacketing technology. It ensures good quality in production. Therefore, it is an ideal equipment for books glue binding in large and medium sized printing factory.
Process
Main technical parameter
| Model | Pro-EBM-3D | Pro-EBM-4D | Pro-EBM-5D |
| Binding Breadth | 160x120~450x300 | 160x120~450x300 | 160x120~450x300 |
| Binding Thickness | 3-60mm | 3-60mm | 3-60mm |
| Binding Speed | 1800book/hour | 1800book/hour | 2000book/hour |
| Total Power | 15kw | 17kw | 18kw |
| Packing Weight | 2150kg | 2160kg | 2550kw |
| Packing Size | 3470x1500x1630mm | 3470x1500x1630mm | 3950x1600x1630mm |
| Clip Quantity | 3 clamps | 4 clamps | 5 clamps |
Features
Automatic Side Gear Patent Technology Of Side Glue Boiler
Lead Rail Binder Patent Technology
Automatic Feeding
Before and after the book automatically disconnect the glue function
-
